Arcadia De Pid

Ho.Re.Ca. Automatic dosage, Direct connection, Heating exchanger, Pid Control
GROUPS 1 GR 2 GR 3 GR
COLORS
Description
Data table
Pictures
Files

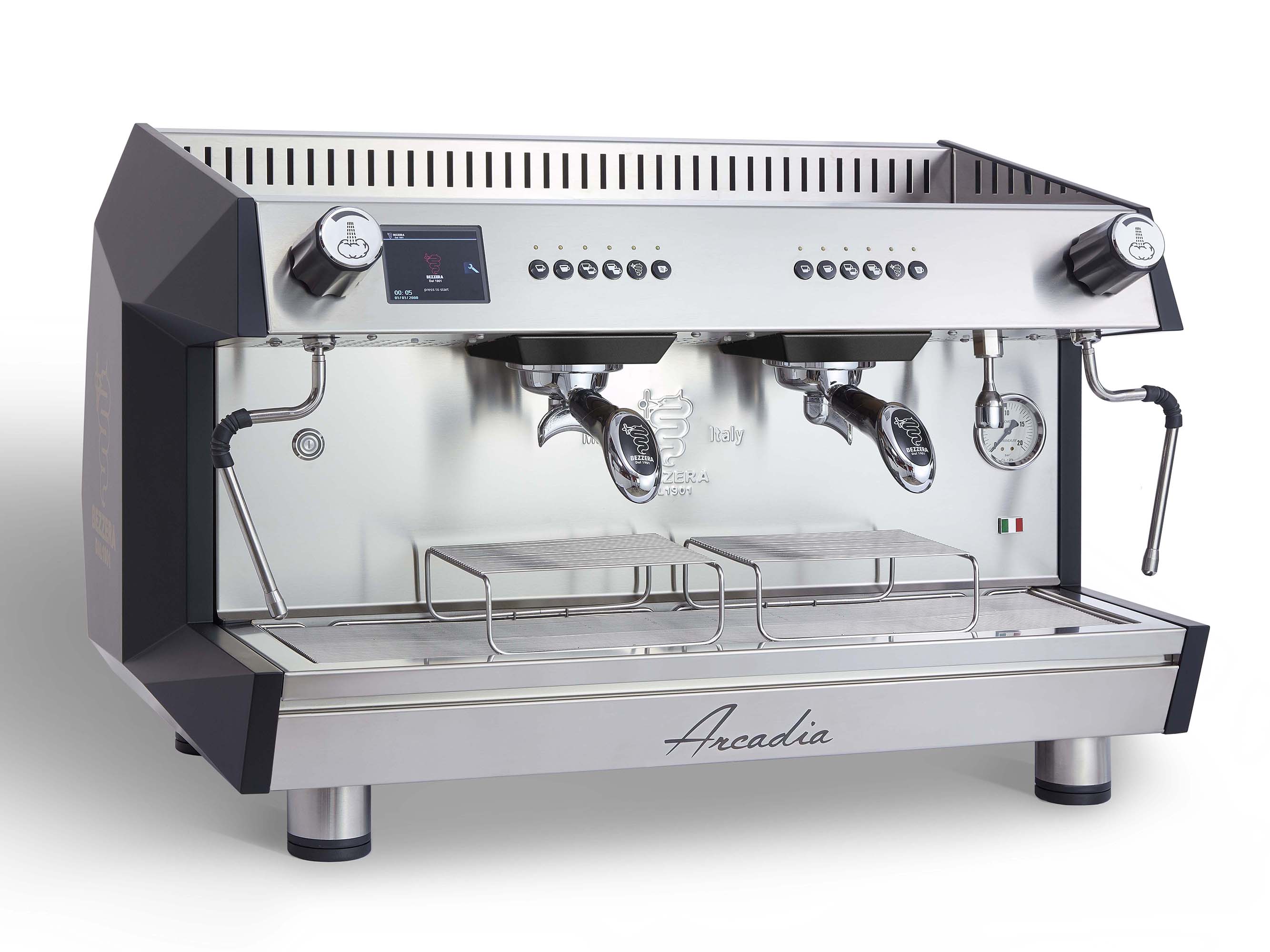

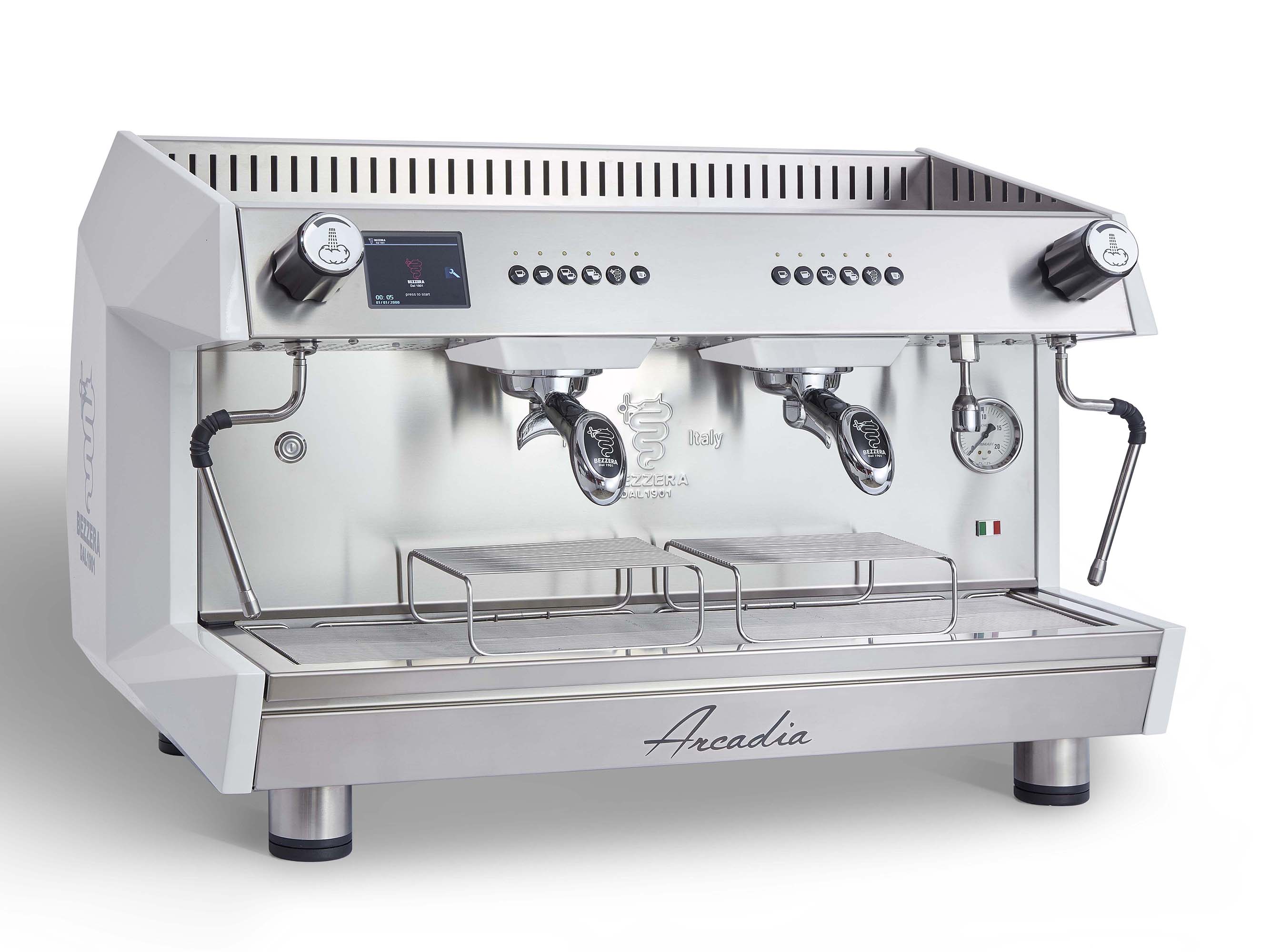

ARCADIA


Bezzera reliability and know-how, enhanced by the current technological solutions, create a new coffee machine model for the most demanding users satisfaction.
The adjustable brewing groups temperature, the customizable pressure profile for each key, combined with an accurate setting of the "brew ratio", allow to brew a perfect espresso ... It is not over....!
Thanks to an innovative patent and an hydraulic system consisting of 2 independent circuits able to provide a certified thermal stability, Arcadia is the first professional espresso machine able to prepare coffee with the drip brewing method, with the same brewing head used to brew an espresso (only available on DE BREWING PROFILE versions).



DE PID MODEL
4 programmable coffee doses for each additional group on a continuous key and a command for mixed hot water dispensing to reduce energy consumption to a minimum and dispensewater at the ideal temperature for use.
The PID system with a 3.5" TFT display allows the user to manage the temperature of each group individually, and make the best of different mixtures, without harming the performance of the service boiler, also managed by a programmable display thermostat. A practical menu displays the number of drinks dispensed, and the main malfunction alarms or maintenance reminders.

VERSION DE BREWING PROFILE
In addition to all the features in the model DE PID, the version DE Display is able to optimize the 4 main beverages:

  • Espresso: preassure brewing profile and temperature can be customized by the software, In order to get the best olfactory and organoleptic sensation from your blend.
  • Drip coffee brewing: allow to set 1 or more specific program to brew your blend with the drip brewing method. Automatically the group will dispense water at the optimum preset temperature and flow rate.
  • Tea: up to 6 dedicated programs (3 if AUTO-FOAMER option is installed) for 2 hot water dispensers, allowS to dispense the right amount of water at the correct temperature for your green tea or black tea menus.
  • Milk foamer option: allows to set 3 differents programs that allow to get 3 differents milk texture and temperatures.


MAIN TECHNICAL FEATURES:

  • Groups controlled by thermostat: with 50W resistance to maintain a constant temperature even in conditions of maximum use.
  • Boiler in copper: provides excellent productivity of steam and hot water; the levels in the boiler are automatically controlled by an electronic control unit.
  • Heat exchangers: thanks to a system of heat exchangers feed by a hydraulic circuit separate from the boiler, the coffee is always brewed by means of a flow of fresh water.
  • Safety: double safety of the boiler guaranteed by an safety thermostat and by an overpressure hydraulic valve.
  • Versatility: the wide working area and the unique trays allow to use cups up to 14cm high, in addition to the traditional espresso coffee cups. All Arcadia models are equipped with internal volumetric motor pump inside the machine that is directly connected to the water mains.
  • Optional: Auto Foamer (only on DE BREWING PROFILE).
  • Wi-Fi: a modern Wi-Fi module allows for the machine to be connected with any smartphone, tablet or PC with a wireless card in order to check parameters, program and download dispensing profiles, and create sharable program files with any operating system.



    1GR 2GR 3GR
Power supply V~/Hz 110 - 120 / 50-60Hz
Nominal power W 1700 3050 3600
Resistance W 1400 2600 3000
Power supply V~/Hz 220 - 415 / 50-60 Hz
Nominal power W 2300 3450 5600
Resistance W 2000 3000 5000
Boiler l 5 11 17
Width mm 644 824 1034
Depth mm 565 565 565
Height mm 525 525 525
Net weight kg

48 (DE PID)

54 (DISPLAY)

60 (DE PID)

67 (DISPLAY)

76 (DE PID)

82 (DISPLAY)

Gross weight kg

61 (DE PID)

67 (DISPLAY)

73 (DE PID)

82 (DISPLAY)

92 (DE PID)

98 (DISPLAY)

Load connection   G 3/8"
Drain connection   G 3/4"
